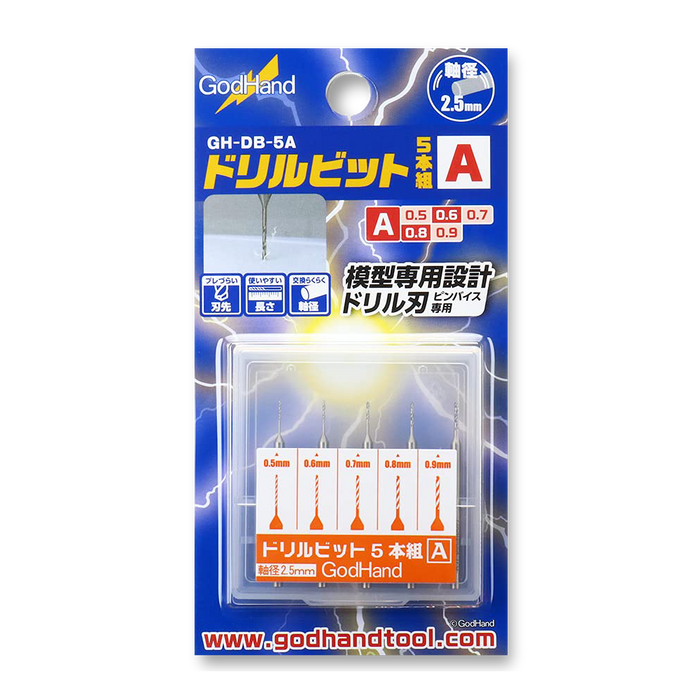

GodHand GH-DB-5A Drill Bit Set (A)

GodHand GH-DB-5A Drill Bit Set (A)

$18.00
| /

In stock

Precision micro drill bit set engineered specifically for scale modeling, Gunpla, resin kits, miniatures, and fine-detail hobby work.

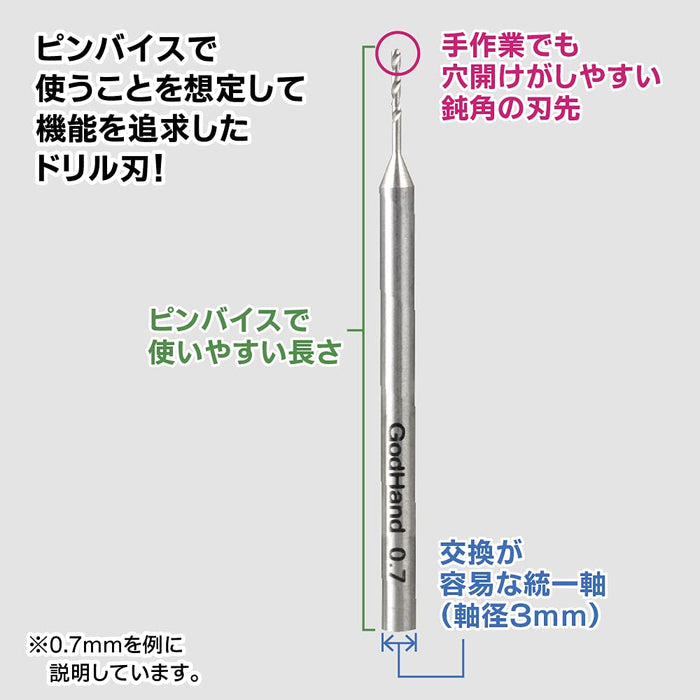

The GodHand GH-DB-5A Drill Bit Set (A) is a premium collection of ultra-precision micro drill bits developed specifically for model builders and detail-focused hobby work. Unlike generic hobby drill bits, the GH-DB series is engineered with a specialized obtuse-angle cutting tip that improves drilling stability and helps produce cleaner, more accurate circular holes in plastic and resin materials.

Designed to pair perfectly with the GodHand GH-PB-98ST Power Pin Vise, these bits feature a standardized 2.5mm shank diameter, allowing fast bit changes without constantly swapping collets.

The shorter cutting length also improves visibility and control during delicate drilling operations, making them ideal for miniature detailing, pinning, wiring, barrel openings, and precision assembly work.

Features

  • Specialized obtuse-angle cutting tip for smoother drilling
  • Designed specifically for scale modeling and hobby work
  • Produces cleaner, more accurate circular holes
  • Standardized 2.5mm shank for faster bit changes
  • Short cutting length improves control and visibility
  • Excellent for plastic, resin, and miniature applications
  • Compatible with most hobby pin vises
  • Ideal companion for the GH-PB-98ST Power Pin Vise

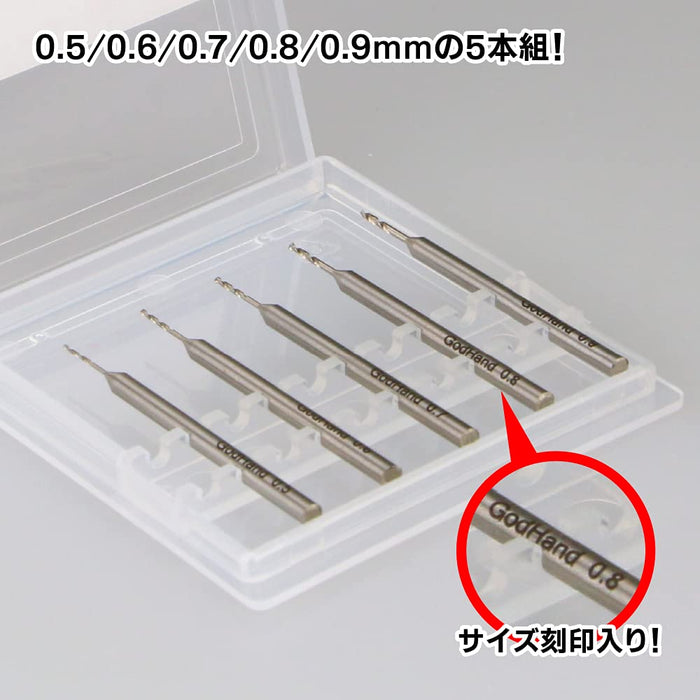

Included Drill Sizes

  • 0.5mm
  • 0.6mm
  • 0.7mm
  • 0.8mm
  • 0.9mm

Specifications

Attribute Value
Model GH-DB-5A
Drill Sizes 0.5mm–0.9mm
Quantity 5 bits
Shank Diameter 2.5mm
Material Special tool steel
Application Plastic & hobby materials
Made For Manual pin vise use

Perfect For

  • Gunpla and Gundam kits
  • Scale model detailing
  • Resin figure pinning
  • HO and railroad modeling
  • Diorama detailing
  • Opening gun barrels
  • LED and wiring holes
  • Photo-etch preparation

Why Modelers Like Them

Many modelers prefer the GH-DB series because the specialized tip geometry drills more smoothly and reduces wandering compared to generic micro drill bits. The shorter cutting section also gives better visibility when working on tiny parts and delicate surfaces.

Workshop Tip

These sizes are especially useful for:

  • 0.5mm–0.6mm → fine wiring and micro details
  • 0.7mm–0.8mm → brass rod pinning and grab handles
  • 0.9mm → slightly larger reinforcement holes and hobby modifications

Always rotate slowly with light pressure when using ultra-fine bits to avoid breakage.
